Aerospace

OEMs and their suppliers need quality air flow measurements of aircraft turbine engine components. Each OEM has a unique testing specification, and their suppliers need flexible equipment to comply with various test procedures.  Our equipment meets those needs with a 30-year proven track record.

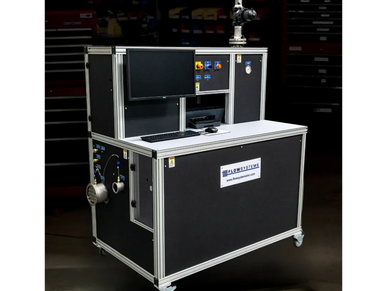

High Flow Air Test System-for broad-range flow testing

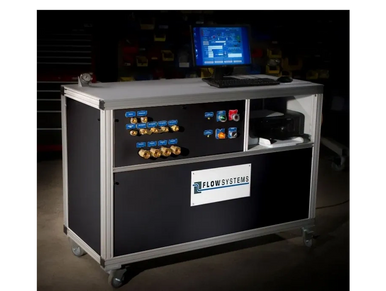

Low Flow Air Test System –our flagship aerospace model

High Flow Air Test System-for broad-range flow testing

High Flow Air Test System-for broad-range flow testing


Uncertainty, repeatability, throughput, and availability are critical elements in the design of each Test System.



  • Designed for Aircraft or Land-Based, Gas Turbine Parts
  •  2 Outlet Ports
  •  Best in Class Specifications
  •  Standard & Optional Flow Ranges Available
  •  Configurable Part Pressure Ratio Ranges

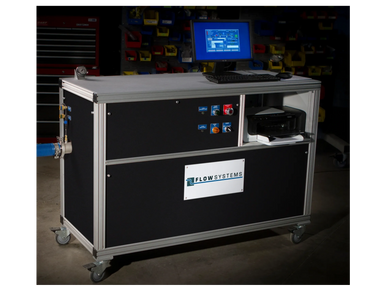

Medium Flow Air Test System for mid-range flows

Low Flow Air Test System –our flagship aerospace model

High Flow Air Test System-for broad-range flow testing

Medium Flow Air Test System for mid-range flows


Using Sonic Nozzle technology for Air Flow Metering and Windows™-based software for automation of all tasks and Remote Internet Diagnostics. Highly repeatable results for testing aircraft turbine parts at mid-range flows.


  • Complete, automated solution for flow measurement
  • Highly customizable controller software for test automation and data management

Low Flow Air Test System –our flagship aerospace model

Low Flow Air Test System –our flagship aerospace model

Low Flow Air Test System –our flagship aerospace model

Low Flow Air Test System –our flagship aerospace model


Designed for high change flow to throughput of aircraft parts. All measurements in our test stands have accredited, NIST-traceable calibrations. Customizable software allows for generating, saving, and recalling test configuration data as well as configuring, saving and printing test results data.


  • Up to 6 Outlet Ports
  • Standard Flow Range and Optional Flow Ranges Available
  • Variable Part Pressure Ratio Ranges
  • Optional Pressure Probing
  • Back Flow Options

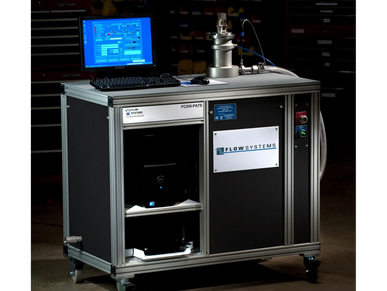

Mini Flow Air Test System – For Low-Range Flow Testing

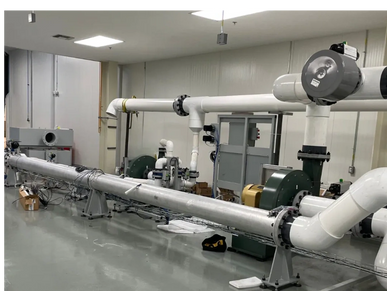

Fan System– For Highest Flow Rate in Aircraft & Land-Based Assemblies

Low Flow Air Test System –our flagship aerospace model

Mini Flow Air Test System – For Low-Range Flow Testing


An automated test stand using a PC-based control system written in National Instrument’s LabVIEW© with a Microsoft Windows Operating System. Designed for repeatable measurement at low flow ranges.


  • Small Footprint for use in Cellular Manufacturing
  • Single Flow Port
  • Designed for a Lower Cost Solution that still exceeds OEM Requirements

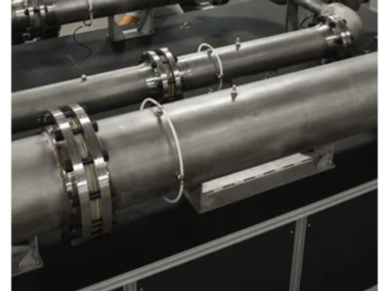

Mega Flow Air Test System– For Highest Maximum Flow Rates

Fan System– For Highest Flow Rate in Aircraft & Land-Based Assemblies

Fan System– For Highest Flow Rate in Aircraft & Land-Based Assemblies

Mega Flow Air Test System– For Highest Maximum Flow Rates


Built for Very Large Effective Area passages in both aircraft and land-based turbine engine assemblies. Uses Sonic Nozzle technology for lowest uncertainty measurements.


  • Using Blow Down Technique
  • Highly Repeatable Results
  • Customizable software for test automation and data management

Fan System– For Highest Flow Rate in Aircraft & Land-Based Assemblies

Fan System– For Highest Flow Rate in Aircraft & Land-Based Assemblies

Fan System– For Highest Flow Rate in Aircraft & Land-Based Assemblies

Fan System– For Highest Flow Rate in Aircraft & Land-Based Assemblies


  • Designed to test Turbine Engine Combustion Parts and Systems
  • Uses Sub-Sonic Orifice Plate Flow Meter Technology
  • Flow either uni-direction or bidirectional

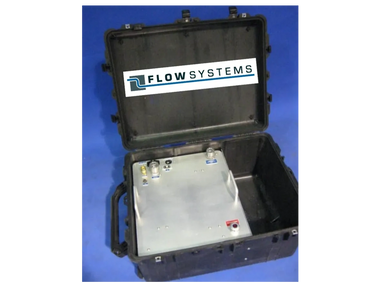

Portable Airflow Test System (PATS)

Portable Airflow Test System (PATS)

Portable Airflow Test System (PATS)

Portable Airflow Test System (PATS)

The PATS is an Air Flow Metering System that employs 1 to 4 automatically selected Sonic Nozzles (Critical Flow Venturis) to meter the air flow through each Unit Under Test (UUT). The System Controller Software sets the proper pressure at the inlet of the UUT and calculates the mass flow through the sonic nozzle.


  • Transport Case or Bench-Top Mountable
  • Single Flow Port
  • Competitive Uncertainty & Flow Range
  • Good for field measurements of test parts

Request a Quote

Air Flow Test Stand

Custom Fixturing Options

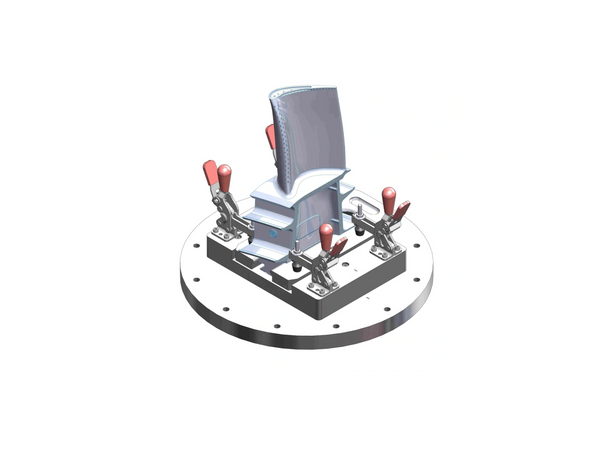

Aerospace Part Fixture

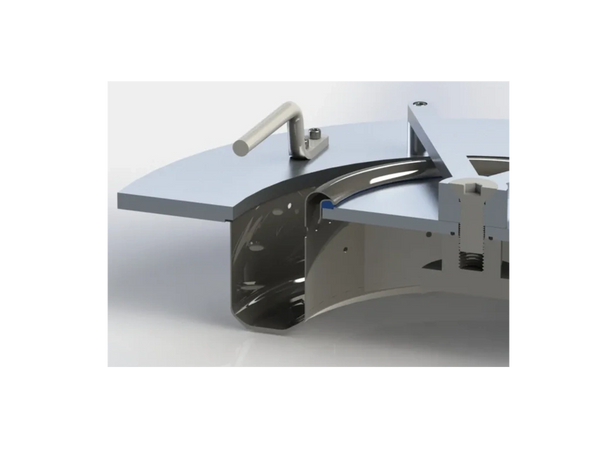

Aerospace Liner Fixture

Aerospace Liner Fixture

Aerospace Part Fixture

Aerospace Liner Fixture

Aerospace Liner Fixture

Aerospace Liner Fixture

Aerospace Liner Fixture

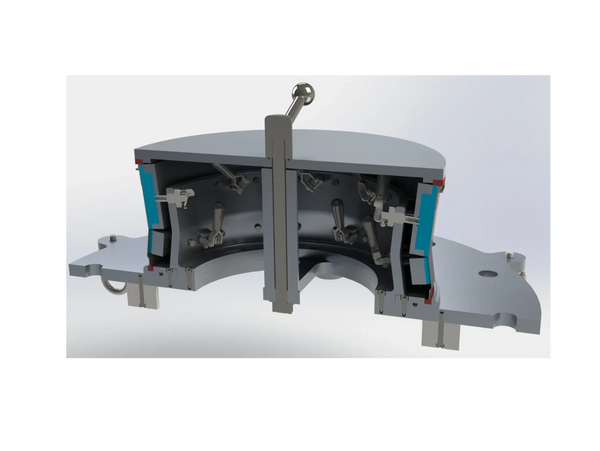

Aerospace Outer Fixture

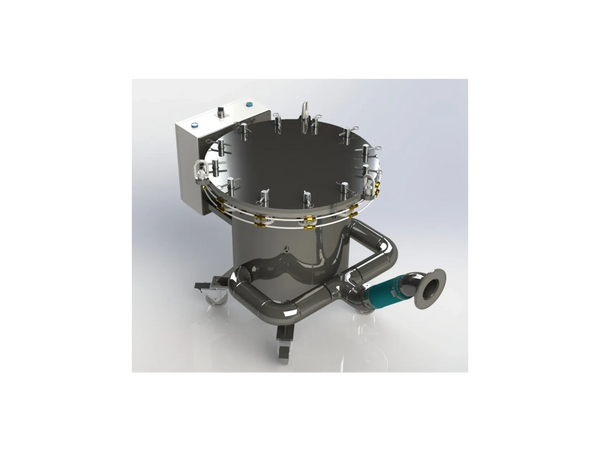

Aerospace Plenum Fixture

Aerospace Plenum Fixture

Aerospace Outer Fixture

Aerospace Plenum Fixture

Aerospace Plenum Fixture

Aerospace Plenum Fixture

Aerospace Plenum Fixture

Request a Quote

Tooling & Fixturing
